![7.38kW Complete Solar Power System - 12,000W 120/240V [14.3kWh-15.36kWh Lithium Battery Bank] + 18 x 410W Mono Solar Panels [OGK-MAX]](http://soleynergy.com/cdn/shop/files/OGK_MAX-NO_LABEL_640x_d55b8f3e-68c2-445f-bb7d-02aad0730260_{width}x.webp?v=1744524948)
![7.38kW Complete Solar Power System - 12,000W 120/240V [14.3kWh-15.36kWh Lithium Battery Bank] + 18 x 410W Mono Solar Panels [OGK-MAX]](http://soleynergy.com/cdn/shop/files/OGK_MAX-NO_LABEL_640x_d55b8f3e-68c2-445f-bb7d-02aad0730260_530x@2x.webp?v=1744524948)
Availability:
Estimated Arrival: Between May 13 and May 14. *ETA to USA Only
Shipping & Returns: Get FREE Shipping TODAY!

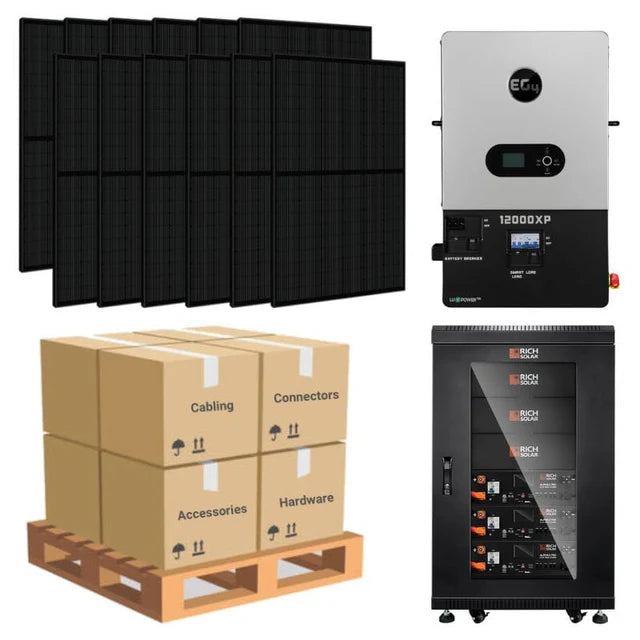

What's Included:
-
Ships from USA! - 1 x EG4 12000XP Off-Grid Inverter
- 18 x 410 Watt Monocrystalline Solar Panels - 25-Year Power Output Warranty
- 1 x DC Disconnect Switch
- 2 x 50ft, 10AWG, PV Extension Cables, SET
- 2 x 10ft, 10AWG, PV Extension Cables SET
- 2 x PV Inline Fuse Kit
- 1 x EG4 WallMount Indoor Battery [14.3kWh] - 10 Year Warranty
- 1 x Indoor Buildable Conduit Box
- 1 x Inverter to Battery Cable
- 1 x EG4 Conduit Box Top Plate
- Free System Schematic & Wiring Diagram Included
- User Manuals & Any Related Certifications
- Fast, Reliable Shipping
- Lifetime Customer Support
Product Specifications:
| EG4 12000XP Off-Grid Inverter Specifications | |
|---|---|
| Max. Units in Parallel | 6 |
| Product Dimensions (HxWxD) | 34.25×20.87×5.91 in. (870×530×150 mm) |
| Unit Weight | 104.7 lbs. (47.5 kg) |
| Design Topology | High Frequency - Transformerless |
| Relative Humidity | 5 – 95% (non-condensing) |
| Operating Altitude | <6561 ft. (<2000 m) |
| Operating Ambient Temperature Range | 32°F – 113°F (0°C – 45°C) @ Full Load |
| Storage Ambient Temperature Range | 5°F – 140°F (-15°C – 60°C) |
| Noise Emission (Typical) | <60 dB |
| Cooling Method | Fan |
| Communications Interface | RS485/CAN/Wi-Fi |
| Standard Warranty | 5-year standard warranty |
| Ingress Protection Rating | IP20 |
| EG4 WallMount Indoor Specifications | |
|---|---|
| Total Energy Capacity | 14.3kWh @25C, 100% SOC |
| Voltage | 51.2V |
| Capacity | 280Ah |
| Charging Voltage | 56.0V (+/-0.8V) |
| Charging Current | 200A (Max. continuous) |
| Discharging Current | 200A (Max. continuous) |
| Discharge Rate | 10.24kW (Max. continuous) |
| Dimensions | 36.4 in.×18.1 in.×9.6 in. (925 mm×460 mm×245 mm) |
| Weight | 282.2 lbs. (128 kg) |
| Design Life | >10 Years |
| Cycle Life | >8000 cycles, 0.5C 80% DOD |
| Certifications | UL1973, UL 9540A (Passed) |
| Warranty | 10 Years |
| OGK - MAX Solar Kit | |
|---|---|
| Max Continuous Output | 12,000W |
| Max Recommended Solar Input | 28,000W |
| Total Wattage of Panels | 7,380W |
| Total KWH of Batteries | 15.36kWh |
| Wattage Per Panel | 410W |
| # of Panels | 18 |
| System Voltage | 48V |
| Chemistry | Lithium |
| # of Batteries | 1 |
| Solar Panel Specifications | |
|---|---|
| Cell Type Monocrystalline | 182mm x 91mm |
| Dimension (L× W × H) | 67.80 x 44.65 x 1.18 inch |
| Weight | 22.0kg (45.80 lbs) |
| Front Glass | 3.2mm Toughened Glass |
| Frame | Anodized Aluminium Alloy |
| Cable | 250mm or Customized Length |
| Junction Box | IP 68 Rated |
| Rated Power (Pmpp) | 410 |
| Rated Current (Impp) | 13.15 |
| Rated Voltage (Vmpp) | 31.18 |
| Short Circuit Current (Isc) | 13.72 |
| Open Circuit Voltage (Voc) | 37.23 |
| Module Efficiency (%) | 21.00 |
| Warranty | 25years Linear Performance Warranty |
Disclaimer: Each solar kit includes solar-specific equipment to get you started, but please keep in mind that you may need to purchase additional items like installation tools, grounding rods/wire, and any AC components you might need. We highly recommend bringing in a certified solar installer or master electrician to help with the installation process to ensure a safe and reliable system that meets all relevant codes and standards. Also, if you purchase a solar kit without solar panels, you will be responsible for ensuring the compatibility and configuration of your solar panel array. Each solar kit includes professionally designed schematics that work within the parameters of each inverter. There are minimum and maximum input voltages with each inverter that you will need to be aware of so that you do not damage your inverter and/or void your warranty.
